YZ-H系列船用起重用三相异步电动机

YZ-H系列船用起重用三相异步电动机(单速、双速及三速)

YZ-H Series Three phase Marine Asynchronous Motor For Hoisting (single speed,double speed and three speed)

产品概述 (Product Overview )

YZ-H 系列船用起重用电动机适用于船舶上驱动各种起重机械及冶辅助设备,具有较高的过载能力和机械强度。适用于短时间或断续周期性工作制,频繁起动,制动及有显著振动及有冲击的设备。如锚机、绞盘机及绞盘等,也可作操作不频繁的起货机的动力。该系列电机具有性能好、体积小、噪音低、工作可靠、维修方便等特点。

YZ-H Series three phase marine asynchronous motor for hoisting is suitable for driving various hoisting and smelting auxiliary equipments on board ship,the motors has good ability of overload and mechanical strength.it dose apply to short time or intermittent period duty,it is also used for frequent starting, braking and working with equipment which has abvious vibration and shock. such as anchor windlass,winch,capstan and so on,it can also provide power for cargo winch that is no need to operate frequently.the motor has feature of good performance, small size,low noise,reliable working and easy manitenance etc.

工作环境条件(Operating Conditions)

海拔≤1000m

Altitude should be lower than 1000m above sea level

环境温度: -25~+45℃

Ambient temperature  -25~+45℃

空气相对湿度 ≤95%

Relative humidity should be less than 95%.

倾斜:  ±22.5°

Inclination :±22.5°

摇摆:  ±22.5°

Swing:±22.5°

有盐雾、油雾、霉菌及海水的影响

Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.

有船舶和近海装置正常营运和作业中产生的冲击、振动的影响

Influenced by shock and vibration come from ships and offshore installation.

防护等级:IP56; 绝缘等级:F

Protection :IP56 ; Insulation :F

电压/频率:380V/50Hz、440V/60Hz

Voltage/Frequency: 380V/50Hz、440V/60Hz

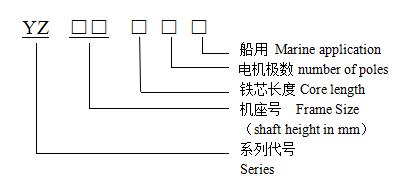

型号说明(Type Designation)

技术数据(Technical Data)

单速、双速 (Single Speed 、Double Speed)

型 号
Type
额定功率
Rated Output (kW)
额定电流
Rated current (A)
额定转速
Rated Speed (r/min)
工作制    Duty 直流制动器 DC Brake
380V   50Hz 440V   60Hz 380V   50Hz 440V   60Hz 380V   50Hz 440V   60Hz 电 压      VOLT (V) 电 流   Current (A) 制动力矩 Braking torque (N·m)
YZ112S-4-H 1.5 1.8 4.3 4.5 1360 1632 S2-30min 110 1.37 33
YZ112M-4-H 2.2 2.5 6 5.92 1360 1630
YZ112L-4-H 3.7 4 9.6 8.98 1360 1630
YZ112S-6-H 1.1 1.2 3.5 3.31 890 1068
YZ112M-6-H 1.5 1.8 4.65 4.82 890 1068
YZ112L-6-H 2.2 2.5 6.6 6.51 890 1068
YZ132M1-4-H 5.5 6.3 13.4 13.3 1356 1670 1.56 72
YZ132M2-4-H 7.5 8.5 18.5 17.88 1360 1690
YZ132S-6-H 3.7 4 10.5 9.85 940 1130
YZ132M-6-H 5.5 6.3 15.3 15.1 940 1130
YZ160S-6-H 7.5 8.5 19.73 19.31 940 1140 1.61 160
YZ160L-6-H 11 13 26.8 27.34 930 1130
YZ180L-6-H 15 18.5 36 38.42 960 1152 2.24 203
YZ200M-6-H 18.5 22 43.9 45.13 950 1140 2.23 260
YZ225S-6-H 22 25 50.97 50.03 950 1140 2.16 399

三速 (Three Speed )

型号
Type
额定功率
Rated Output (kW)
额定电流
Rated current (A)
额定转速
Rated Speed (r/min)
工作制  Duty 直流制动器 DC Brake
380V/50Hz 440V/60Hz 380V/50Hz 440V/60Hz 380V/50Hz 440V/60Hz 电压 VOLT (V) 电流 Current (A) 制动力矩 Braking torque (N·m)
YZ132M-4/12-H 3/1.1 3.5/1.2 8.3/7.6 8.4/8.6 1360/430 1660/530 S2-30/10min 110 1.56 72
YZ132L-4/12-H 4/1.5 4.5/1.7 10.3/9.1 10/8.9 1400/430 1700/530
YZ160L-4/12-H 6.3/2.2 7.5/2.5 15.4/11.9 16.2/11.7 1394/426 1690/530 1.61 160
YZ180L-4/12-H 8.5/3.5 10/4.0 19/18 20.5/17.7 1400/438 1690/520 2.24 203
YZ180L-4/16-H 11/3 13/3.5 24/16 26.8/16.7 1424/328 1742/380 S2-30/15min
YZ200M-4/16-H 15/4 17/4.5 32.8/24.1 33.2/23.4 1420/340 1740/400 2.23 260
YZ200L-4/16-H 18.5/5.5 22/6.3 40.4/32.6 42.4/32.3 1420/340 1740/410
YZ200S-4/8/16-H 9/9/4.2 10/10/4.7 21.4/24.7/37.3 20.5/23.7/36.4 1435/684/324 1738/837/406 S2-10/30/5min 110 2.23 260
YZ200L-4/8/16-H 12.5/12.5/5.7 14/14/6.5 29.3/34.3/49.5 28.4/33.2/49.4 1437/689/330 1733/840/410
YZ225S-4/8/16-H 16.8/16.8/8 19/19/9.1 38.9/46.2/67.6 38/45/67.9 1420/683/333 1723/835/413 2.16 399
YZ225L-4/8/16-H 22.5/22.5/10.6 25/25/12 51.5/60.3/85.6 49.4/57.9/86.3 1422/686/334 1725/838/415
YZ250S-4/8/16-H 30/30/14.5 33.5/33.5/16 63.8/71.3/105.5 61.6/68.7/103.5 1410/680/336 1713/832/415 2.65 876
YZ250M-4/8/16-H 42/42/20 46/46/22 86.3/95/112.6 81.6/89.8/110 1410/676/334 1707/830/414
YZ280S-4/8/16-H 56/56/27 63/63/30 114/120.6/147.5 111.2/117.2/145 1414/694/345 1717/844/423 2.45 1550
YZ280L-4/8/16-H 75/75/36 84/84/40 154/161.5/182 149/156.2/179.5 1427/692/345 1729/843/423

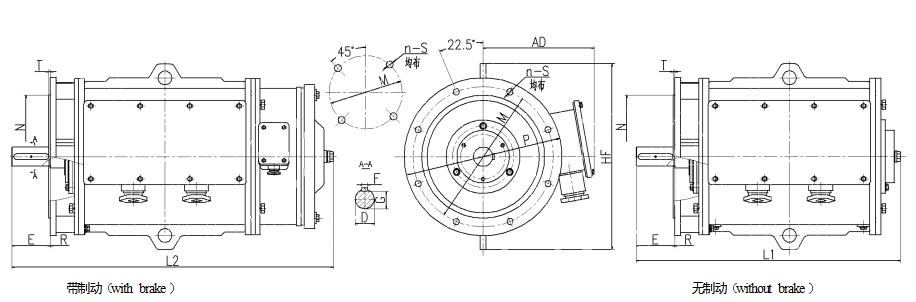

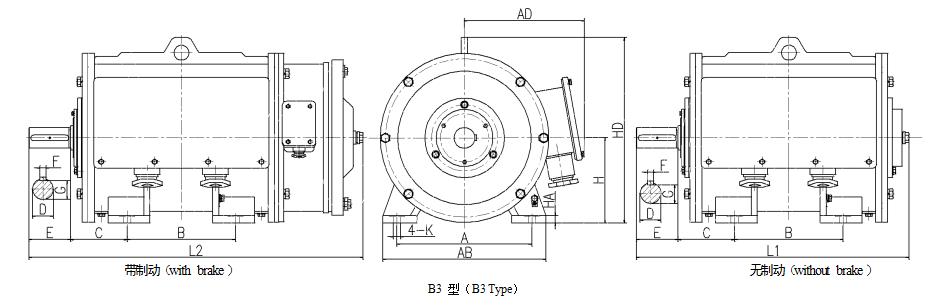

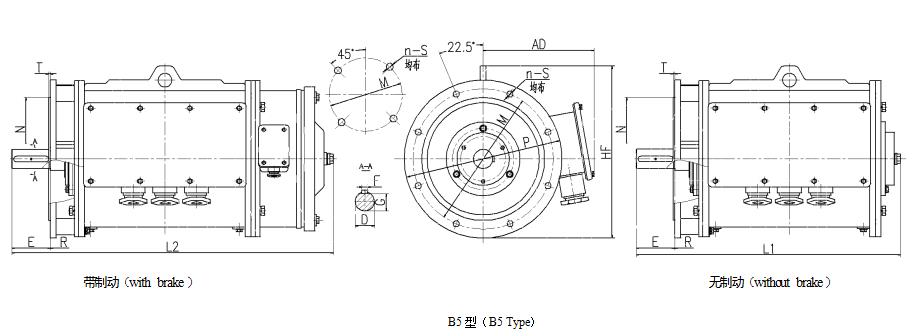

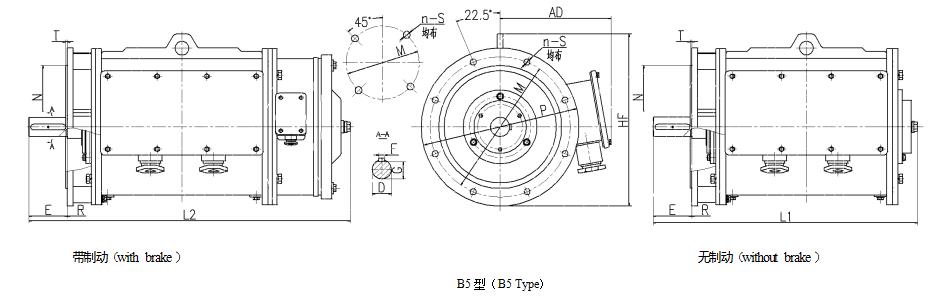

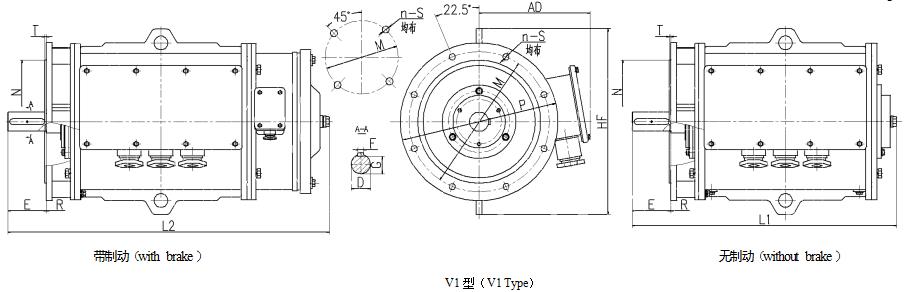

外形及安装尺寸

(Mounting and Overall Dimensions)

单速、双速 (Single Speed 、Double Speed)

机座号
Frame Size
外形及安装尺寸 Mounting and Overall Dimension 重量 Weight(kg)
A B C D E F G H K AB AD HA HD L1 L2 L1 L2
112S 190 114 70 28 60 8 24 112 12 235 215 12 290 315 440 51 73
112M 140 340 465 54 74
112L 159 360 490 60 86
132S 216 140 89 38 80 10 33 132 259 225 15 330 425 545 63 99
132M 178 455 590 85 122
132L 203 485 615 86
160S 254 178 108 42 110 12 37 160 15 303 258 20 380 510 650 120 145
160L 254 590 740 150 175
180L 279 279 121 48 14 42.5 180 341 275 400 660 810 220 260
200M 318 267 133 200 19 385 300 470 240 330
200L 305 706 846 295 380
225S 356 286 149 55 16 49 225 435 325 520 730 890 325 426

单速、双速 (Single Speed 、Double Speed)

机座号 Frame Size 外形及安装尺寸 Mounting and Overall Dimension 重量 Weight(kg)
D E F G M N P R S T n AD HF L1 L2 L1 L2
112S 28 60 8 24 265 230 300 0+0.25 0 15 4 4 215 335 315 440 51 73
112M 340 465 54 74
112L 360 490 60 86
132S 38 80 10 33 225 350 425 545 63 99
132M 455 590 85 122
132L 485 615 86
160S 42 110 12 37 300 250 350 19 5 258 390 510 650 120 145
160L 590 740 150 175
180L 48 14 42.5 350 300 400 275 420 660 810 220 260
200M 400 350 450 8 300 490 240 330
200L 706 846 295 380
225S 55 16 49 500 450 550 325 550 730 890 325 426

单速、双速 (Single Speed 、Double Speed)

机座号 Frame Size 外形及安装尺寸 Mounting and Overall Dimension 重量 Weight(kg)
D E F G M N P R S T n AD HF L1 L2 L1 L2
112S 28 60 8 24 265 230 300 0+0.25 0 15 4 4 215 360 315 440 51 73
112M 340 465 54 74
112L 360 490 60 86
132S 38 80 10 33 225 385 425 545 63 99
132M 455 590 85 122
132L 485 615 86
160S 42 110 12 37 300 250 350 19 5 258 430 510 650 120 145
160L 590 740 150 175
180L 48 14 42.5 350 300 400 275 450 660 810 220 260
200M 400 350 450 8 300 510 240 330
200L 706 846 295 380
225S 55 16 49 500 450 550 325 550 730 890 325 426

三 速 (Three Speed)

机座号 Frame Size 外形及安装尺寸 Mounting and Overall Dimension 重量 Weight(kg)
A B C D E F G H K AB AD HA HD L1 L2 L1 L2
200S 318 228 133 48 110 14 42.5 200 19 398 300 20 470 660 790 249 335
200L 305 740 870 280 385
225S 356 286 149 55 16 49 225 436 325 520 765 925 330 405
225L 356 835 995 390 465
250S 406 311 168 65 140 18 58 250 24 506 400 23 600 845 1030 600 690
250M 349 880 1060 700 850
280S 457 368 190 75 20 67.5 280 557 430 660 910 1125 800 880
280L 457 1000 1215 1010 1200

三 速 (Three Speed)

机座号 Frame Size 外形及安装尺寸 Mounting and Overall Dimension 重量 Weight(kg)
D E F G M N P R S T n AD HF L1 L2 L1 L2
200S 48 110 14 42.5 350 300 400 0+0.25 0 19 5 4 300 490 660 790 249 335
200L 740 870 280 385
225S 55 16 49 400 350 450 18 8 325 510 765 925 330 405
225L 835 995 390 465
250S 65 140 18 58 500 450 550 400 585 845 1030 600 690
250M 880 1060 700 850
280S 75 20 67.5 430 670 910 1125 800 880
280L 1000 1215 1010 1200

三 速 (Three Speed)

机座号 Frame Size 外形及安装尺寸 Mounting and Overall Dimension 重量 Weight(kg)
D E F G M N P R S n T AD HF L1 L2 L1 L2
200S 48 110 14 42.5 350 300 400 0 19 4 5 300 510 660 790 249 335
200L 740 870 280 385
225S 55 16 49 400 350 450 18 8 325 540 765 925 330 405
225L 835 995 390 465
250S 65 140 18 58 500 450 550 400 615 845 1030 600 690
250M 880 1060 700 850
280S 75 20 67.5 430 750 910 1125 800 880
280L 1000 1215 1010 1200

注:本产品样本中,所有产品数据参数仅供参考,如有疑问请与工厂联系,并以定货时提供给用户的确认资料为准。

Note:All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
